egovframework:hyb:init:add:cordova [eGovFrame]

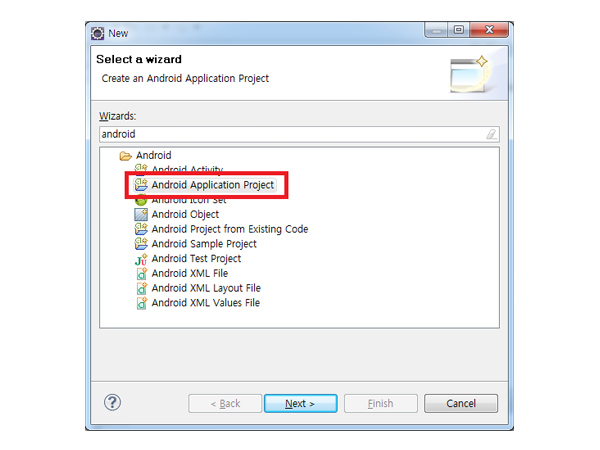

New > others > Android Project 생성

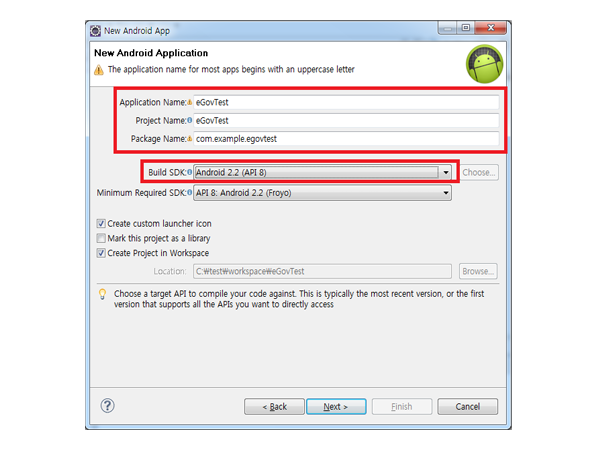

Application Name 입력, Build SDK : Android 2.2 (API 8)

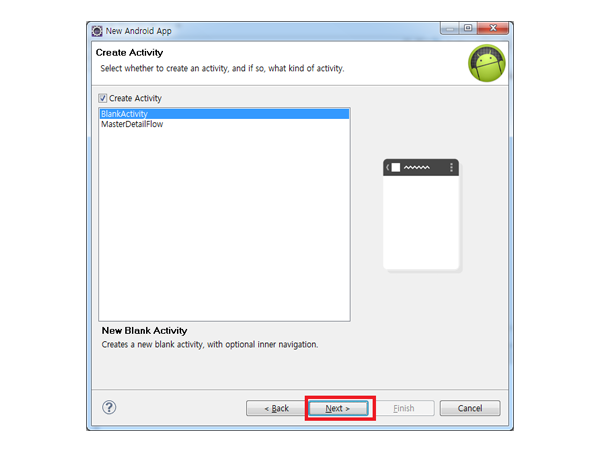

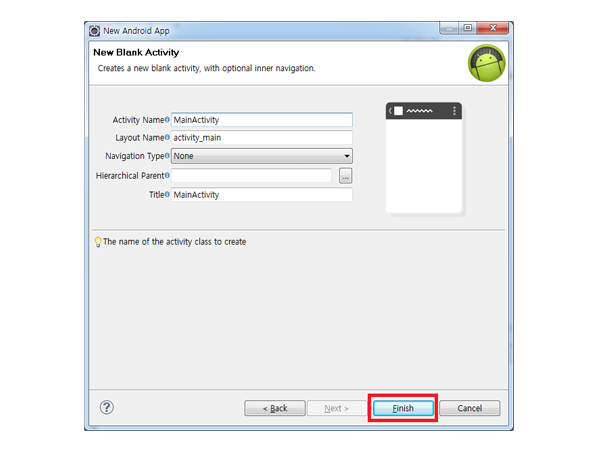

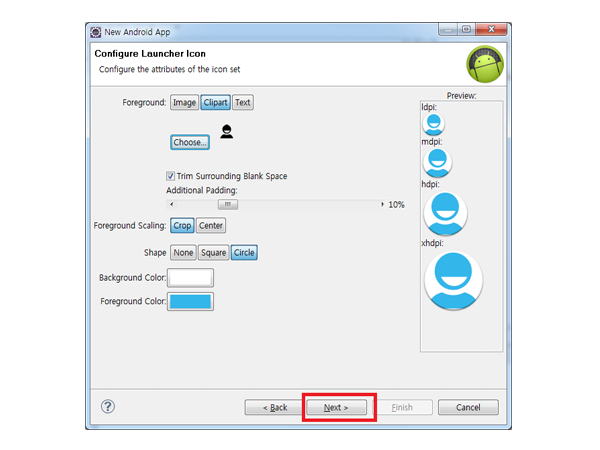

Next 계속 실행 후 Finish

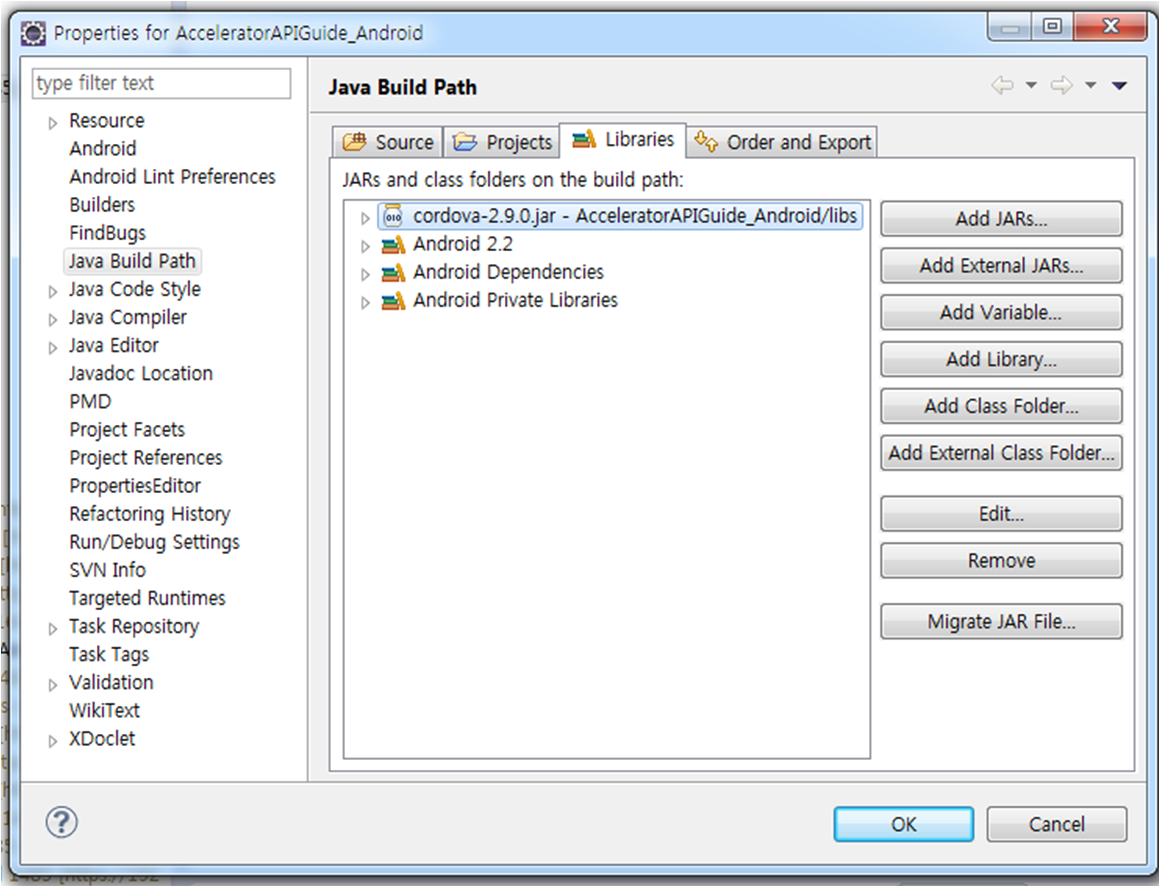

Window > Preference > Java Build Path > cordova-2.9.0.jar 선택

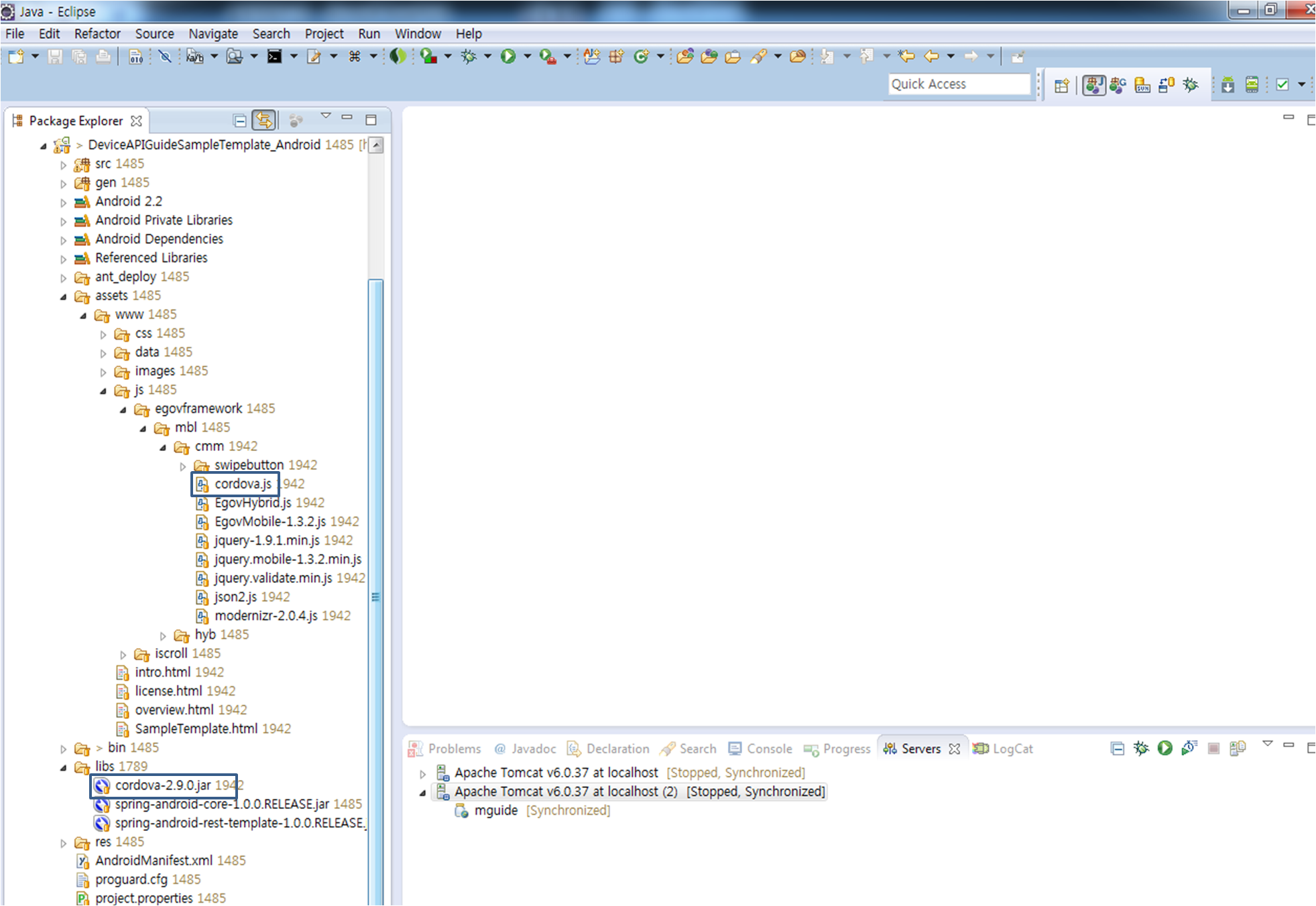

lib, assests에 js 및 cordova-2.9.0.jar 추가

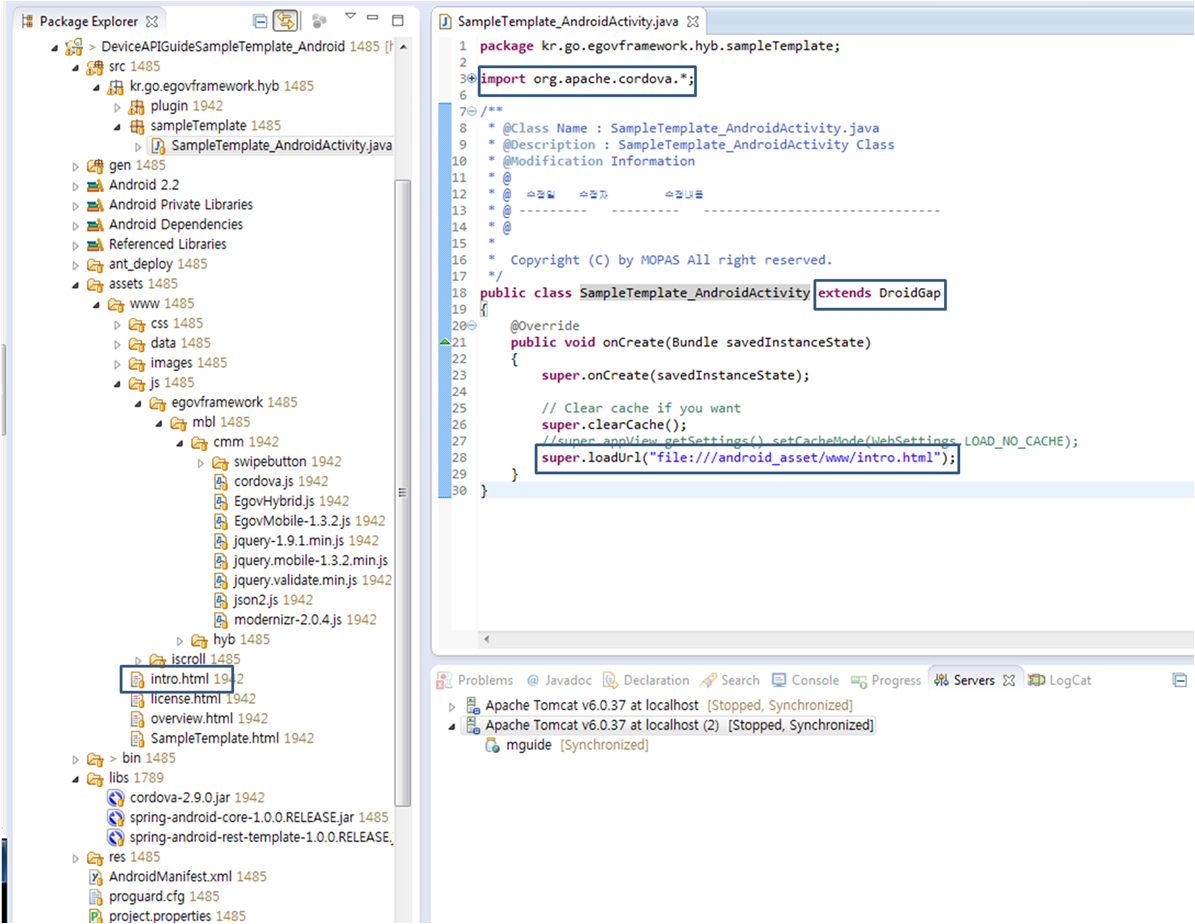

index.html 추가 및 Activitt.java 에 코드 추가

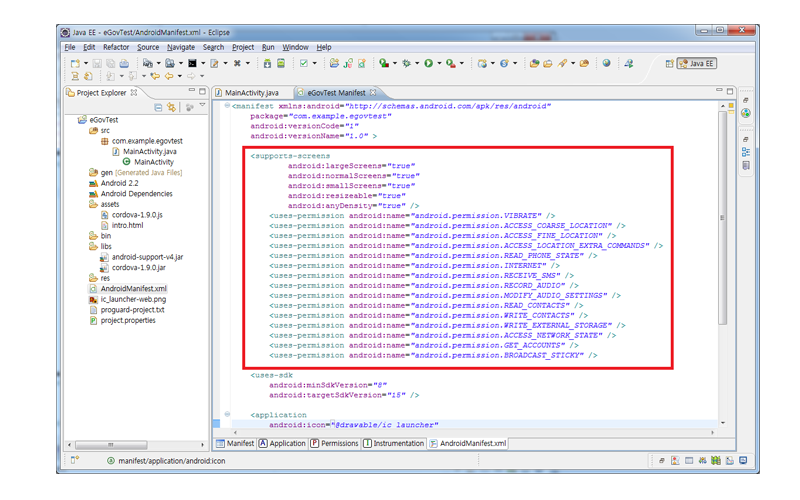

AndroidManifest.xml에 권한 코드 추가

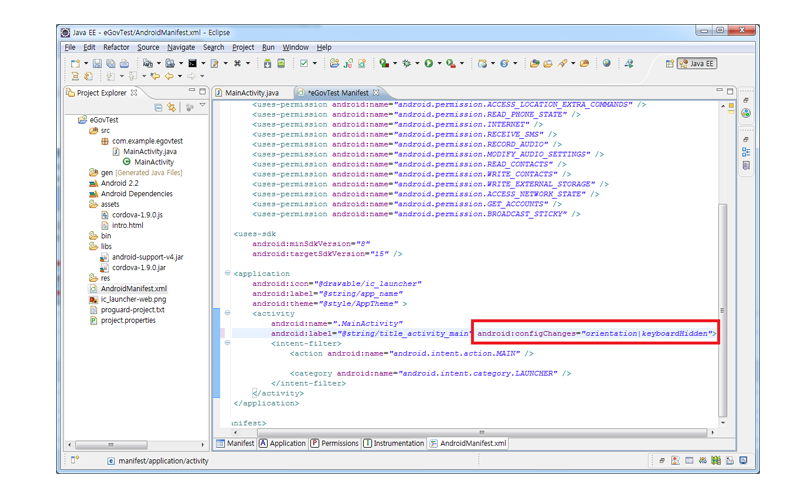

AndroidManifest.xml에 설정 변경에 대한 설정 코드 추가

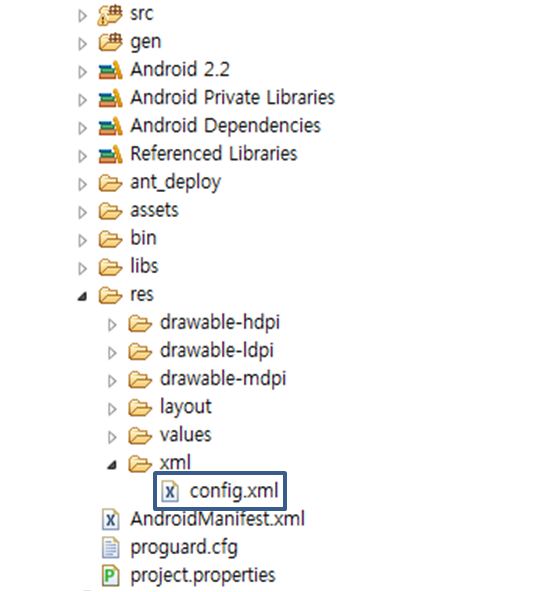

xml/cordova.xml, xml/plugin.xml 추가

Activity.java

앱 어플리케이션의 주요 설정과 디바이스 내에서 앱 어플리케이션 동작을 제어 하는 Activity Class 이다.

package com.example.egovtest;

import org.apache.cordova.*;
import android.os.Bundle;

public class MainActivity extends DroidGap {

    @Override
    public void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        super.loadUrl("file:///android_asset/www/intro.html");
    }
}

AndroidManifest.xml

앱 어플리케이션의 실행과 동작에 관련한 설정 및 디바이스 제어 권한을 설정하는 XML 이다.

<supports-screens
		    android:largeScreens="true"
		    android:normalScreens="true"
		    android:smallScreens="true"
		    android:resizeable="true"
		    android:anyDensity="true" />
		<uses-permission android:name="android.permission.VIBRATE" />
		<uses-permission android:name="android.permission.ACCESS_COARSE_LOCATION" />
		<uses-permission android:name="android.permission.ACCESS_FINE_LOCATION" />
		<uses-permission android:name="android.permission.ACCESS_LOCATION_EXTRA_COMMANDS" />
		<uses-permission android:name="android.permission.READ_PHONE_STATE" />
		<uses-permission android:name="android.permission.INTERNET" />
		<uses-permission android:name="android.permission.RECEIVE_SMS" />
		<uses-permission android:name="android.permission.RECORD_AUDIO" />
		<uses-permission android:name="android.permission.MODIFY_AUDIO_SETTINGS" />
		<uses-permission android:name="android.permission.READ_CONTACTS" />
		<uses-permission android:name="android.permission.WRITE_CONTACTS" />
		<uses-permission android:name="android.permission.WRITE_EXTERNAL_STORAGE" />
		<uses-permission android:name="android.permission.ACCESS_NETWORK_STATE" />
		<uses-permission android:name="android.permission.GET_ACCOUNTS" />
		<uses-permission android:name="android.permission.BROADCAST_STICKY" />

<android:configChanges="orientation|keyboardHidden"

config.xml

Cordova (Phonegap) 가 지원하는 Plugin 형태의 디바이스API를 설정하는 XML이다.


<widget xmlns     = "http://www.w3.org/ns/widgets"
        id        = "io.cordova.helloCordova"
        version   = "2.0.0">
    <name>Hello Cordova</name>

    <description>
        A sample Apache Cordova application that responds to the deviceready event.
    </description>

    <author href="http://cordova.io" email="dev@cordova.apache.org">
        Apache Cordova Team
    </author>

    <access origin="*"/>

    <!-- <content src="http://mysite.com/myapp.html" /> for external pages -->
    <content src="index.html" />

    <preference name="loglevel" value="DEBUG" />
    <!--
      <preference name="splashscreen" value="resourceName" />
      <preference name="backgroundColor" value="0xFFF" />
      <preference name="loadUrlTimeoutValue" value="20000" />
      <preference name="InAppBrowserStorageEnabled" value="true" />
      <preference name="disallowOverscroll" value="true" />
    -->

    <feature name="App">
      <param name="android-package" value="org.apache.cordova.App"/>
    </feature>
    <feature name="Geolocation">
      <param name="android-package" value="org.apache.cordova.GeoBroker"/>
    </feature>
    <feature name="Device">
      <param name="android-package" value="org.apache.cordova.Device"/>
    </feature>
    <feature name="Accelerometer">
      <param name="android-package" value="org.apache.cordova.AccelListener"/>
    </feature>
    <feature name="Compass">
      <param name="android-package" value="org.apache.cordova.CompassListener"/>
    </feature>
    <feature name="Media">
      <param name="android-package" value="org.apache.cordova.AudioHandler"/>
    </feature>
    <feature name="Camera">
      <param name="android-package" value="org.apache.cordova.CameraLauncher"/>
    </feature>
    <feature name="Contacts">
      <param name="android-package" value="org.apache.cordova.ContactManager"/>
    </feature>
    <feature name="File">
      <param name="android-package" value="org.apache.cordova.FileUtils"/>
    </feature>
    <feature name="NetworkStatus">
      <param name="android-package" value="org.apache.cordova.NetworkManager"/>
    </feature>
    <feature name="Notification">
      <param name="android-package" value="org.apache.cordova.Notification"/>
    </feature>
    <feature name="Storage">
      <param name="android-package" value="org.apache.cordova.Storage"/>
    </feature>
    <feature name="FileTransfer">
      <param name="android-package" value="org.apache.cordova.FileTransfer"/>
    </feature>
    <feature name="Capture">
      <param name="android-package" value="org.apache.cordova.Capture"/>
    </feature>
    <feature name="Battery">
      <param name="android-package" value="org.apache.cordova.BatteryListener"/>
    </feature>
    <feature name="SplashScreen">
      <param name="android-package" value="org.apache.cordova.SplashScreen"/>
    </feature>
    <feature name="Echo">
      <param name="android-package" value="org.apache.cordova.Echo"/>
    </feature>
    <feature name="Globalization">
      <param name="android-package" value="org.apache.cordova.Globalization"/>
    </feature>
    <feature name="InAppBrowser">
      <param name="android-package" value="org.apache.cordova.InAppBrowser"/>
    </feature>
    <!-- Deprecated plugins element. Remove in 3.0 -->
    <plugins>
    	<plugin name="App" value="org.apache.cordova.App"/>
    	<plugin name="Geolocation" value="org.apache.cordova.GeoBroker"/>
    	<plugin name="Device" value="org.apache.cordova.Device"/>
    	<plugin name="Accelerometer" value="org.apache.cordova.AccelListener"/>
    	<plugin name="Compass" value="org.apache.cordova.CompassListener"/>
    	<plugin name="Media" value="org.apache.cordova.AudioHandler"/>
    	<plugin name="Camera" value="org.apache.cordova.CameraLauncher"/>
    	<plugin name="Contacts" value="org.apache.cordova.ContactManager"/>
    	<plugin name="File" value="org.apache.cordova.FileUtils"/>
    	<plugin name="NetworkStatus" value="org.apache.cordova.NetworkManager"/>
    	<plugin name="Notification" value="org.apache.cordova.Notification"/>
    	<plugin name="Storage" value="org.apache.cordova.Storage"/>
    	<plugin name="Temperature" value="org.apache.cordova.TempListener"/>
    	<plugin name="FileTransfer" value="org.apache.cordova.FileTransfer"/>
    	<plugin name="Capture" value="org.apache.cordova.Capture"/>
    	<plugin name="Battery" value="org.apache.cordova.BatteryListener"/>
    	<plugin name="SplashScreen" value="org.apache.cordova.SplashScreen"/>
    	<plugin name="EgovInterfacePlugin" value="kr.go.egovframework.hyb.plugin.EgovInterfacePlugin" />
		<plugin name="StorageInfoPlugin" value="kr.go.egovframework.hyb.plugin.EgovStorageInfo" />
		<plugin name="DeviceNumberPlugin" value="kr.go.egovframework.hyb.plugin.EgovDeviceNumber" />
    </plugins>
</widget>
